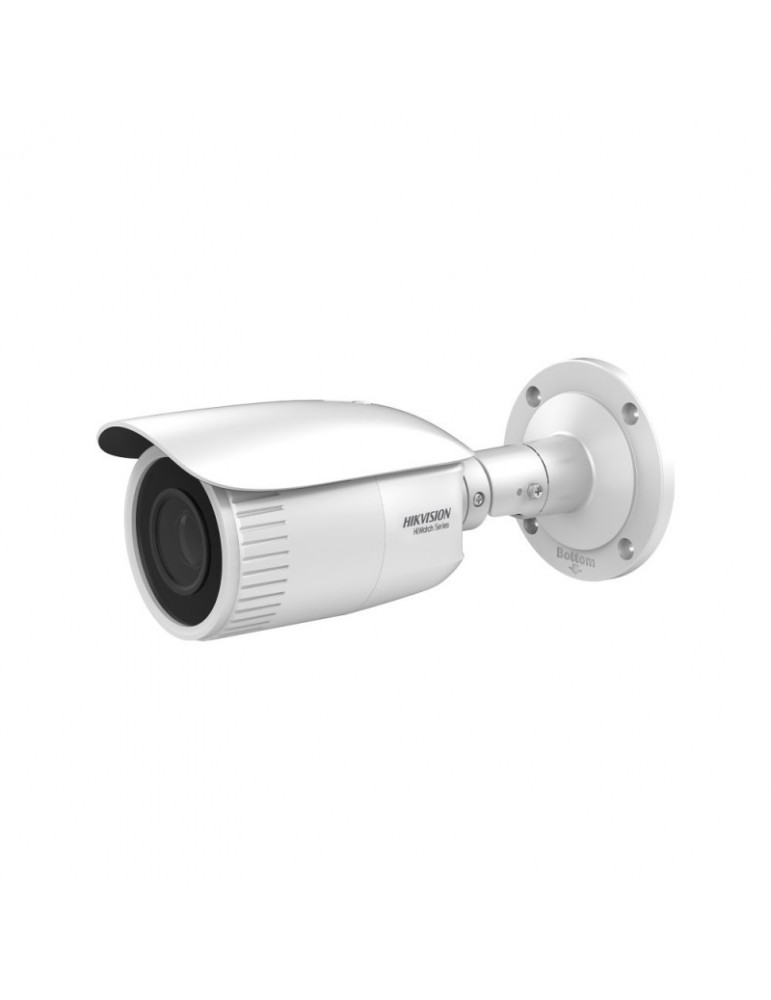

[HWI-B620HA-Z]海康威视200万像素MD 2.0变焦子弹型网络摄像机(2.8-12mm)
- 200万像素高清成像
- 支持人车检测
- 2.8至12毫米电动变焦镜头，安装监控便捷
- 最大支持256GB SD卡存储
- 防水防尘（IP67）
- EXIR 2.0：先进的红外技术，红外探测距离远
- DWDR技术即使在强逆光下也能呈现清晰图像
- 高效的H.265+压缩技术
| Camera | |
|---|---|
| Sensor De Imagen | 1/2.9" Progressive Scan CMOS |
| Max. Resolución | 1920 × 1080 |
| Iluminación Mínima | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Tiempo De Obturación | 1/3 s to 1/100,000 s |
| Día Y Noche | IR cut filter |
| Ajuste De Ángulo | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
|---|---|
| Lente | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7° |
| Montura Del Lente | Ø14 |
| Iris Type | Fixed |
| Apertura | F1.6 |
| Illuminator | |
|---|---|
| Tipo De Luz Suplementaria | IR |
| Rango De Luz Suplementaria | Up to 50 m |
| Luz De Suplemento Inteligente | Yes |
| IR Wavelength | 850 nm |
| Video | |
|---|---|
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Compresión De Video | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Vídeo Bitrate | 32 Kbps to 8 Mbps |
| Tipo H.264 | Baseline Profile,Main Profile,High Profile |
| Tipo H.265 | Main Profile |
| Región De Interés (ROI) | 1 fixed region(s) for main stream |
| Network | |
|---|---|
| Protocolos | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Vista En Vivo Simultánea | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK |
| Seguridad | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Usuario/Operador | Up to 32 users 3 user levels: administrator, operator, and user |
| Cliente | iVMS-4200,Hik-Connect |
| Navegador Web | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
|---|---|
| Configuración De Imagen | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Interruptor Día/Noche | Auto,Schedule,Day,Night |
| Wide Dynamic Range (WDR) | Digital WDR |
| Mejora De La Imagen | BLC,HLC,3D DNR |
| Interface | |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Reset Key | Yes |
| Event | |
|---|---|
| Evento Básico | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Linkage | Uoload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| General | |
|---|---|
| Alimentación | 12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W |
| Material | Metal |
| Dimensión | Ø105 mm × 244.4 mm (Ø4.1 × 9.6\")" |
| Dimensión Del Paquete | 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6") |
| Approx. 705 g (2.3 lb.) | |
| Con Peso Del Paquete | Approx. 1085 g (3.4 lb.) |
| Condiciones De Almacenaje | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Condiciones De Inicio Y Funcionamiento | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Idioma | English, Ukrainian |
| Función General | Heartbeat,anti-banding,mirror,password protection,privacy mask, watermark |
HWI-B620HA-Z
详细信息
- 像素
- 2 Mpx
- 材质
- 半金属
