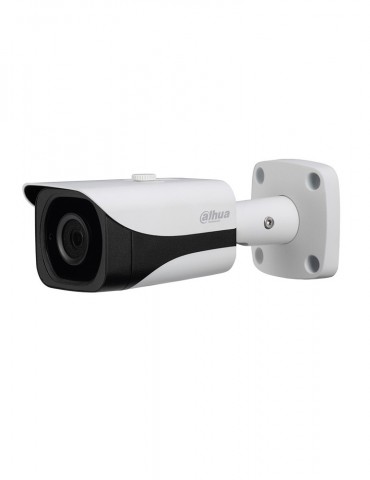

[DH-HAC-HFW2401EP] Dahua Bullet Cámara 3.6mm/6mm Pro Serie HDCVI 4MP 2K Full HD IP67 WDR IR 40M

> 120dB True WDR, 3DNR

> Max 4MP real-time

> HD and SD dual-output

> 3.6mm fixed lens (2.8mm, 6mm optional)

> Max. IR length 40m, Smart IR

> IP67, DC12V

DH-HAC-HFW2401EP-0360B
此产品有大量库存
DAHUA
型号
折扣价: 67,00 € 未含税
  81,07 € 含税 (21%)
1到3天
数量

  • 相机x1
  • 螺丝包x1
  • 说明书x1

Camera

Image Sensor

1/3" CMOS

Effective Pixels

2688(H)×1520(V), 4.1MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination

0.01Lux/F1.5, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 40m (130feet)

IR On/Off Control

Auto / Manual

IR LEDs

2

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm Optional)

Max Aperture

F1.5

Angle of View

H: 79° (99.7°/48.6°)

Focus Control

N/A

Close Focus Distance

1500mm (900mm, 1700mm)

59.06'' (35.43'', 66.93'')

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

4MP (2560×1440)

Frame Rate

25fps@4MP, 25/30fps@1080P, 25/30fps@720P

Video Output

1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m (8px/ft)

2.8mm:63m(208ft)

3.6mm: 80m(262ft)

6mm:120m(394ft)

Observe

63px/m (19px/ft)

2.8mm:25m(83ft)

3.6mm: 32m(105ft)

6mm:48m(157ft)

Recognize

125px/m (38px/ft)

2.8mm:13m(42ft)

3.6mm: 16m(52ft)

6mm: 24m(79ft)

Identify

250px/m (76px/ft)

2.8mm:6m(21ft)

3.6mm: 8m(26ft)

6mm: 12m(39ft)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

12V DC ±25%

Power Consumption

Max 5.9W (12V DC, IR on)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Aluminium

Dimensions

180mm×70mm×70mm (7.09"×2.76"×2.76")

Net Weight

0.40kg (0.89lb)

Gross Weight

0.51kg (1.12lb)

DH-HAC-HFW2401EP-0360B

详细信息

像素
4 Mpx
材质
金属
  • Name : 15天退货期!
  • Description
  • Click here to get more details
