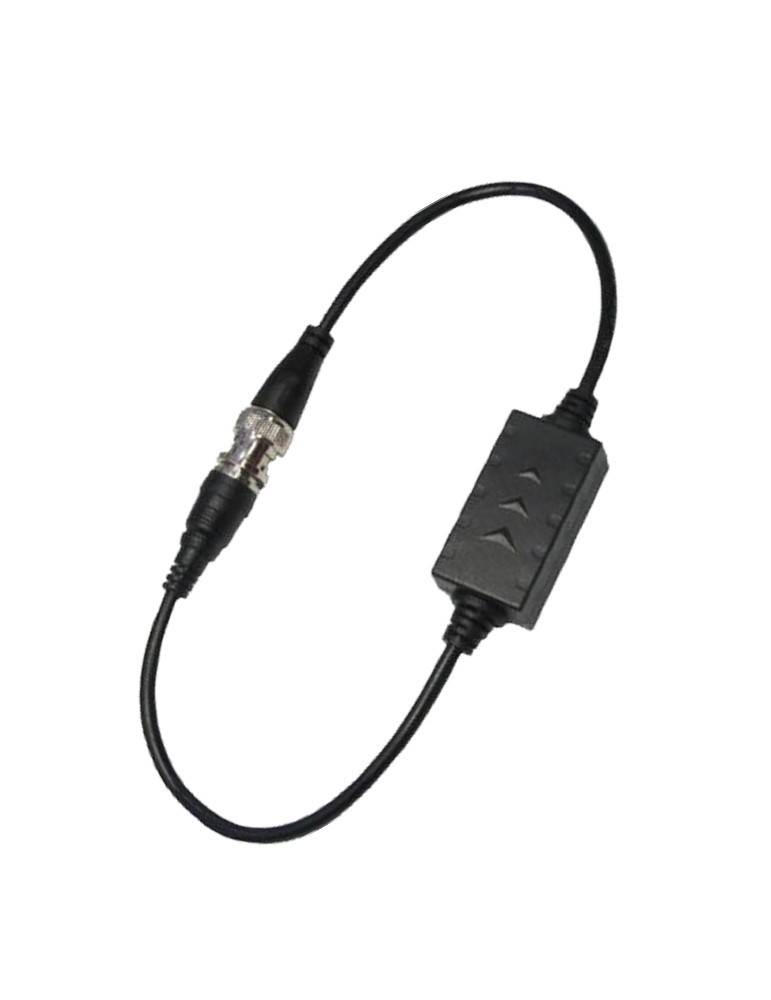

[DH-PFM791] DAHUA HD Video Isolator CCTV Connector Isolator

Name: [DH-PFM791] DAHUA HD Video Isolator CCTV Connector Isolator
Brand: DAHUA
Price: 6.9 EUR
Availability: InStock

>HD video isolator, to solve the HDCVI image interference caused by ground loops effectively;

>Apply to indoor or in junction box

>Working Temperature: -20~55℃

Offer: 6,90 € VAT Excluded

8,35 € VAT Included (21%)

Quantity

Model	PFM791
Properties
Insertion loss	0.5dB
Frequency response	0-65MHz
Input impedence	75Ω
Out impedence	75Ω
Isolation voltage	800V(min.)
Isolation resistance	100MΩ
Protection
ESD protection	Contact discharge: 600V Air discharge: 8000V Per IEC61000-4-2
Surge protection	4KV 10/700us, per IEC61000-4-5
Reliability
MTBF	>20000h
Physical Properties
Dimension(LWH)	Body: 42mmx22.5mmx16mm Length: 400mm
Ourter shell	ABS
Color	Black
N.W.	38g
Environmental
Working temperature	-20℃~55℃
Storage temperature	-20℃~55℃
Relative humidity	0~95%

Reference DH-PFM791
