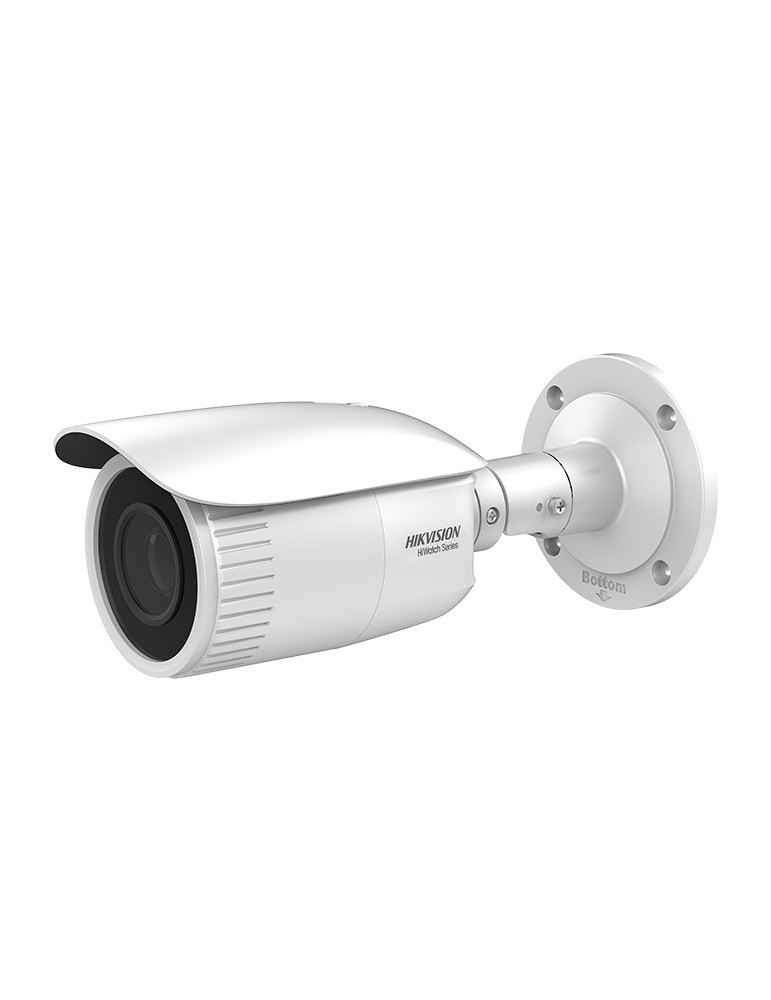

HIKVISION HiWatch Bullet Compact IP Camera HWI-B620H-Z(C) 2MP

  • 1/2.8" progressive scan CMOS
  • 1920 × 1080@30fps
  • 2.8 mm to 12 mm motorized varifocal lens
  • H.265+, H.265, H.264+, H.264
  • Dual stream
  • Digtal WDR (Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • Up to 30 m IR range
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • PoE (Power over Ethernet)
  • IP67
HWI-B620H-Z(C)
This product is available with a high level of stock
HIKVISION
Model
Offer: 103,31 € VAT Excluded
  125,01 € VAT Included (21%)
Quantity

Camera
Appearance Bullet
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day & Night IR cut filter
Digital Noise Reduction 3D DNR
WDR Digital WDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Focal Length 2.8 to 12 mm
Aperture F1.6
Focus Auto
Angle of view Horizontal field of view: 98° to 34°, Vertical field of view: 51° to 19°, Diagonal field of view: 115° to 40°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression H.265+/H.265/H.264+/H.264
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest 1 fixed region for main stream and sub-stream
Resolution 2MP
Main Stream Max. Frame Rate 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Network
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Network Storage Support micro SD/SDHC/SDXC card (128G ), local storage and ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
Reset Button Yes
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.9 A, max. 11 W;
PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W
Ingress Protection level IP 67
Material Metal
Dimensions Φ 105 mm × 244.4 mm (Φ 4.1" × 9.6")
Weight Camera: approx. 1015 g (2.2 lb.)
With package: approx. 1540 g (3.4 lb.)
HWI-B620H-Z(C)

Data sheet

Píxel
2 Mpx
Material
Metal
Zoom
Motorized
