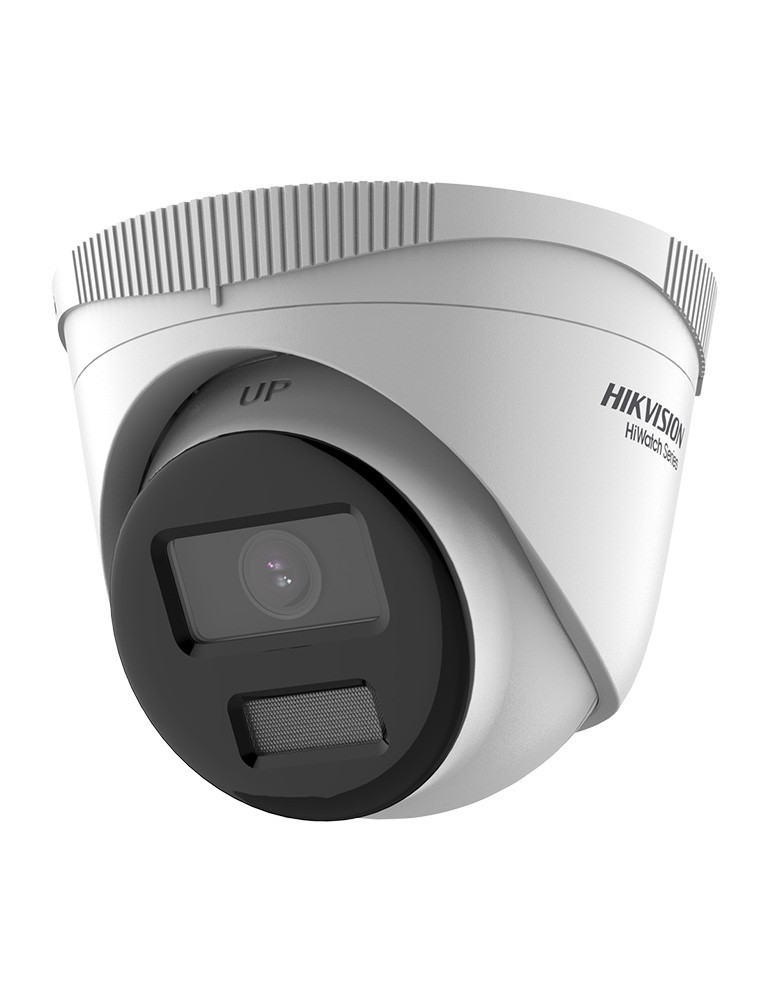

[HWI-T229H(C)] HIKVISION Hiwatch Turret Compact IP Camera
- High quality imaging with 2 MP resolution
- Excellent low-light performance
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- 24/7 colorful imaging
- Camera x1
- set of screws with dowels x1
- Waterproof jacket x1
- QSG manual x1
- sticker for installation x1
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Day & Night24 Colorful imaging
- Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
- Shutter Speed1/3 s to 1/100, 000 s
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1°
4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- DORI
- DORI
2.8 mm, D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m
4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
- Illuminator
- Supplement Light TypeWhite light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region of Interest (ROI)1 fixed region for main stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception
- LinkageUpload to FTP, notify surveillance center, send email, trigger capture
- General
- Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 336 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
- Linkage MethodUpload to FTP, notify surveillance center, send email, trigger capture
- Camera MaterialMetal & Plastic
- Camera DimensionØ112 mm × 88.4 mm (Ø4.41" × 3.48")
- Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Camera WeightApprox. 350 g (0.8 lb.)
- With Package WeightApprox. 610 g (1.3 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Web Client LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMC
FCC-SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014;
KC: KN 32: 2015, KN 35: 2015
- Safety
CB: IEC 62368-1:2014+A11;
CE-LVD: EN 62368-1:2014/A11:2017
- Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
Data sheet
- Píxel
- 2 Mpx
- Material
- Metal
- Technology
- ColorVu
Specific References
- ean13
- 6954273677176
- isbn
- 11099
- upc
- 0103020056
