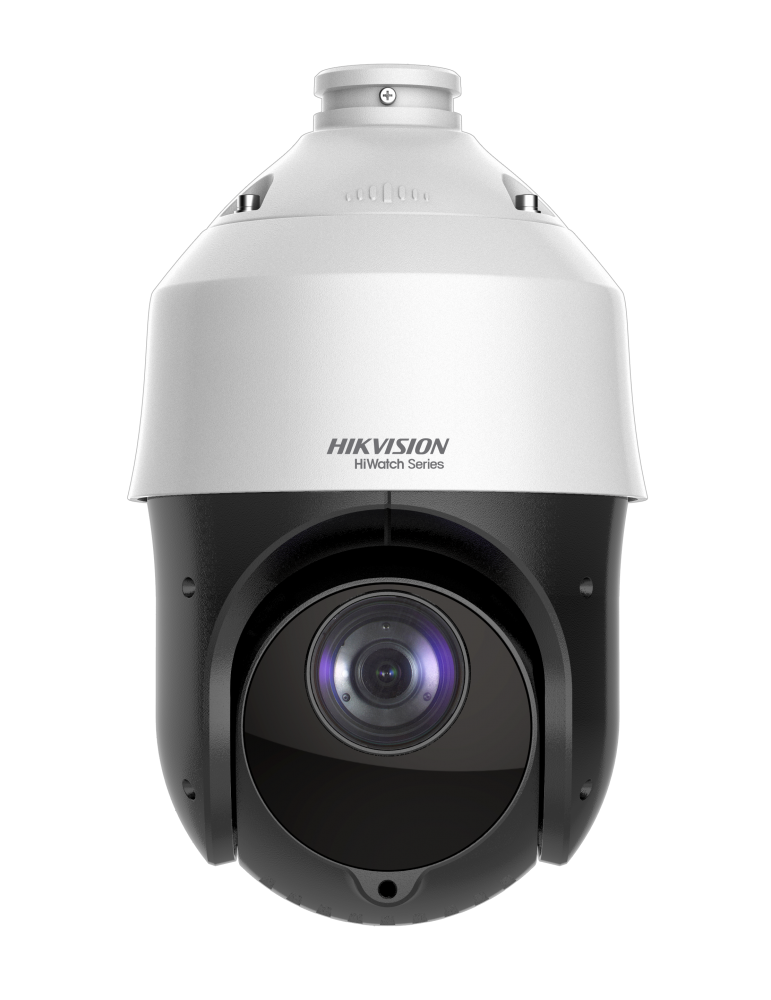

[HWP-N4225IH-DE(B)] HIKVISION Dome Compact IP Camera Hiwatch IR 25x H265 + POE

  • 1/2.8"" progressive scan CMOS
  • Up to 1920 × 1080@30fps resolution
  • Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
  • Up to 100 m IR distance
  • 25× optical zoom, 16× digital zoom
  • 120 dB WDR (Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • Support H.265+/H.265 video compression
  • Up to 24 programmable privacy masks
  • Support ROI
  • 12 VDC & PoE+ (802.3at, class4)
HWP-N4225IH-DE(B)
We do not have stock available for this product
HIKVISION
Model
Offer: 330,58 € VAT Excluded
  400,00 € VAT Included (21%)
Quantity
This product is out of stock, we can order it for you quickly, contact us:
Telephone:+34 910 35 36 71

Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC Auto/Manual
Day & Night IR Cut Filter
Shutter Time 1/1 s to 1/30,000 s
Digital Zoom 16X
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB
Lens
Focal Length 4.8 mm to 120 mm, 25× optical
Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
Field of View Horizontal field of view: 57.6° to 2.5° (wide-tele)
Vertical field of view: 34.4° to 1.4° (wide-tele)
Diagonal field of view: 64.5° to 2.9° (wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
IR
IR Distance Up to 100m
Smart IR Support
PTZ
Pan and Tilt Range Pan:360° endless; Tilt: -15°~90°(Auto Flip)
Pan and Tilt Speed Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s
Proportional Zoom Support
Number of Preset 300
Patrol 8 patrols, up to 32 presets for each patrol
Pattern 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display Support
Preset Freezing Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Compression Standard
Video Compression H.265+/H.265/H.264+/H.264
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
SVC Support
Smart Feature
Basic Event Detection Motion Detection, Video Tampering Detection, Exception Detection
Smart Event Detection Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection
ROI encoding Main stream, sub-stream and third stream respectively support four fixed areas.
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
Max. Image Resolution 1920 x 1080
Stream Support three Streams
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Mini SD Memory Card Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Interface
Audio Input 1-ch
Audio Output 1-ch
Network Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE+
General
Power 12 VDC & PoE+ (802.3at, class4),
Max.:18 W (IR Max.6 W)
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material ADC 12, PC+10% GF
Dimensions Φ 165.9 mm × 290 mm (Φ 6.53" × 11.42")
Weight (approx.) Approx. 2.5 kg (5.51 lb)
HWP-N4225IH-DE(B)

Data sheet

Píxel
2 Mpx
Material
Metal
Optical Zoom
25x

Specific References

upc
0103030011
