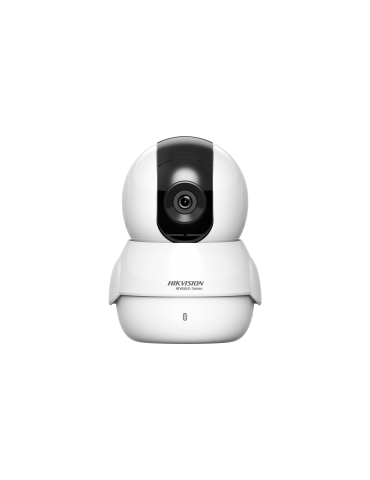

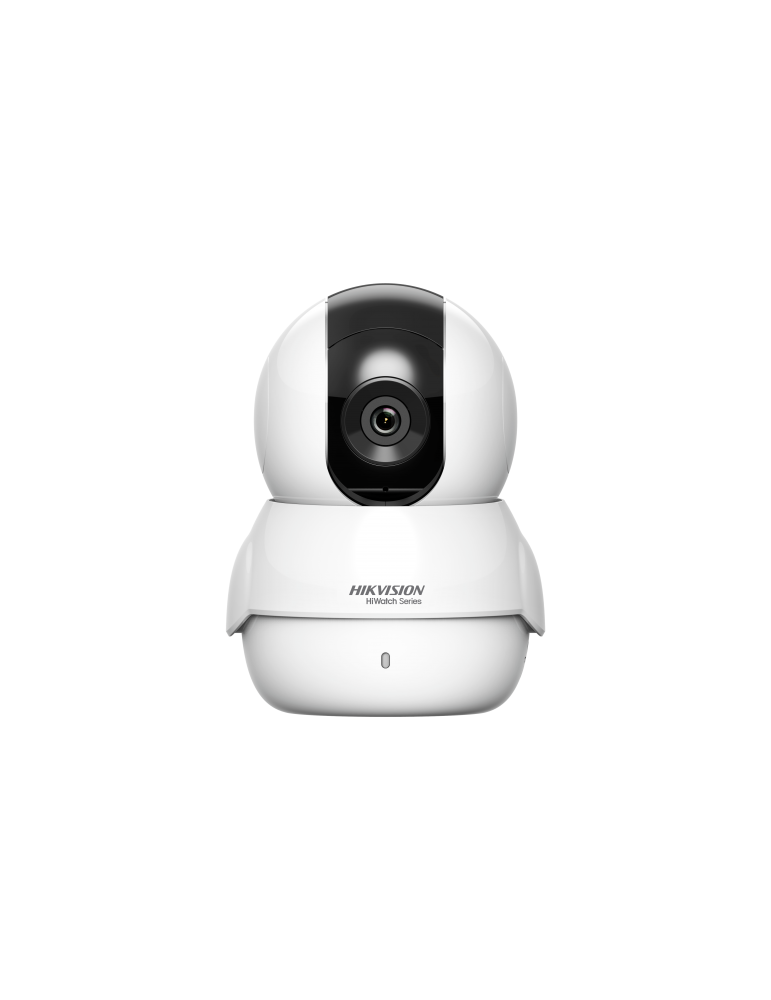

[HWC-P120-D/W]HIKVISION 2 MP Indoor Audio Fixed PT Netwok Camera
- Good quality imaging with 2 MP resolution
- Efficient H.264 compression technology
- Clear imaging against strong back light due to DWDR technology
- Up to 128GB SD card slot for storage
- Provides real-time security through built-in two-way audio
- Wireless connection for convenient installation and use
- View areas of interest using pan and tilt capability
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Support |
| Day &Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Iris | F2.0 |
| DNR | 3D DNR |
| Pan & Tilt | Pan: 0° to 355°; Tilt: -10° to 90° |
| Lens | |
|---|---|
| Lens | 2.8 mm, horizontal field of view 105.8° |
| Lens Mount | M12 |
| Illuminator | |
|---|---|
| IR Range | Up to 5 meters |
| Network | |
|---|---|
| Alarm Trigger | Video tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
| Network Storage | Support micro SD/SDHC/SDXC card, up to 128 GB local storage |
| Protocols | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| Video | |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Video Compression | Main stream: H.264,Sub-stream: H.264 |
| H.264 Type | Baseline Profile/Main Profile |
| Video Bit Rate | 32 Kbps – 8 Mbps |
| Audio | |
|---|---|
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Audio Sampling Rate | Max. 16 kHz |
| Environment Noise Filter | Support |
| Smart Feature-Set | |
|---|---|
| Basic Event | Motion detection |
| Region Of Interest | Support 1 fixed region for each stream |
| Image | |
|---|---|
| Sub-Stream Max. Frame Rate | 50Hz: 25fps (704 × 576, 352 × 288, 640 × 480, 320 × 240),60Hz: 30fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) |
| Image Setting | Brightness, saturation, sharpness, contrast are adjustable via client software |
| Day/Night Switch | Support auto/scheduled |
| Main Stream Max. Frame Rate | 50Hz: 25fps (1920 × 1080, 1280 ×720),60Hz: 30fps (1920 × 1080, 1280 ×720) |
| BLC | Support, zone optional |
| Wi-Fi | |
|---|---|
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency | 2.4 GHz - 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transfer Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range | 50 meters (The performance varies based on actual environment) |
| Interface | |
|---|---|
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | Support mono soundtrack, 1 built-in microphone, 1 built-in speaker |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| General | |
|---|---|
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Reset | Yes |
| Startup And Operating Conditions | -10 °C to 40°C (14 °F to 104 °F), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V ± 10 %, micro USB interface |
| Power Consumption And Current | Max. 1.4A, Max. 7W |
| Material | Plastic |
| Dimensions | Φ 87.5 × 120.9 mm (Φ 3.5'' × 4.8'') |
| Approx. 510g (1.1 lb) | |
