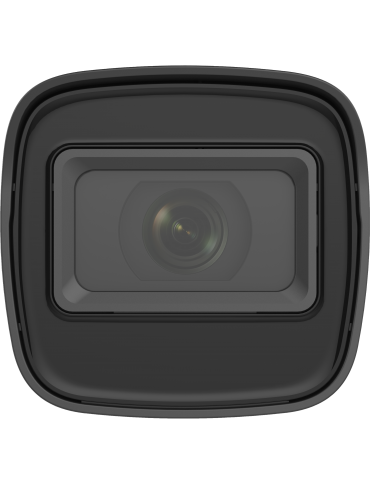

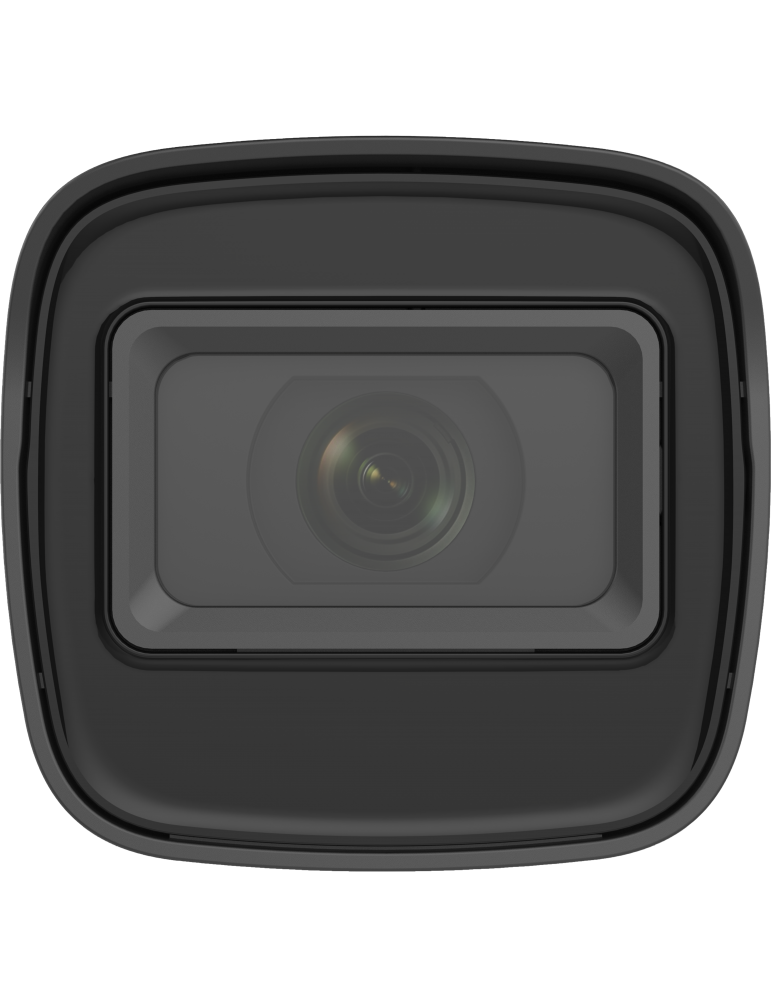

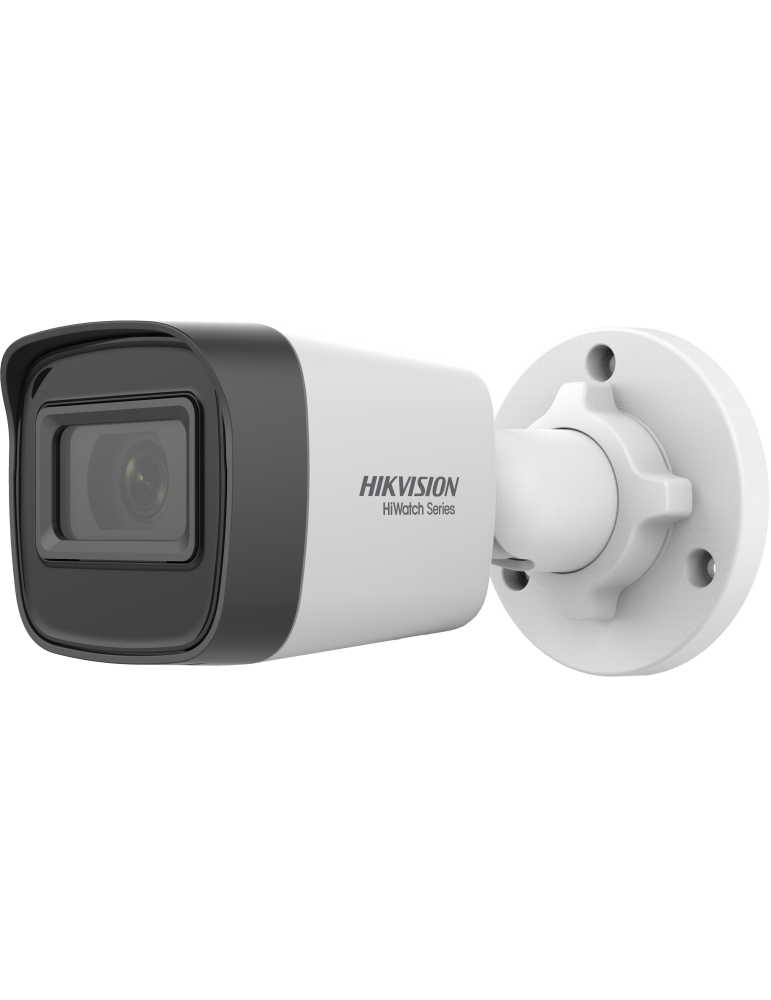

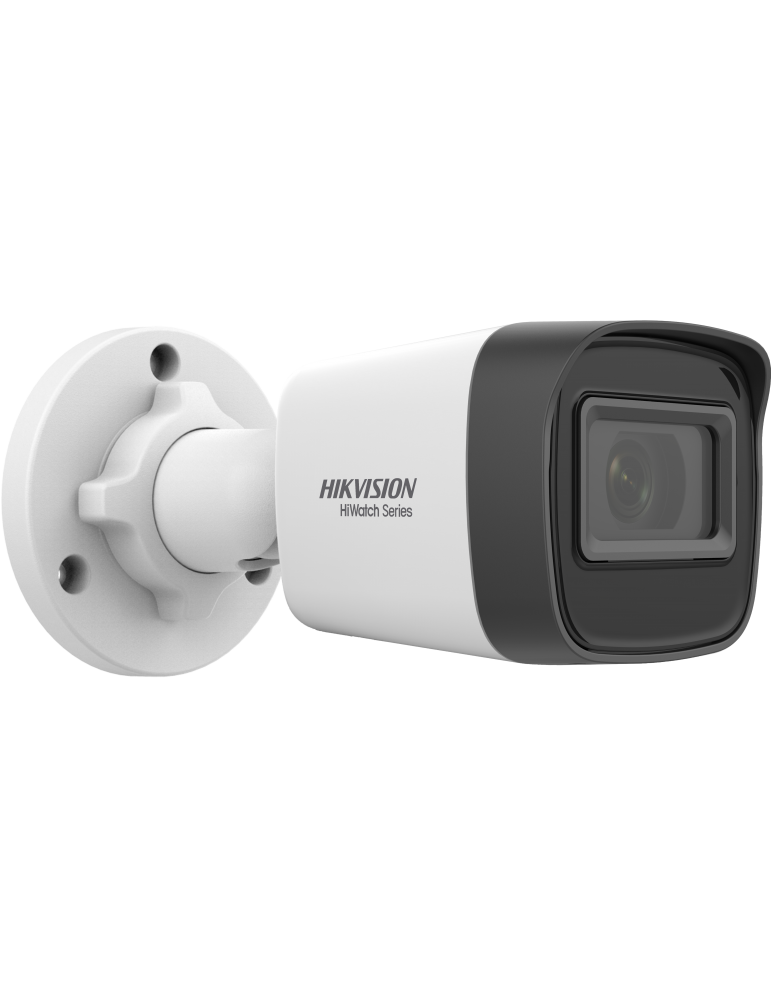

[HWI-B141H-C]HIKVISION 4 MP Fixed Bullet Network Camera(2.8mm/4mm/6mm)
- High quality imaging with 4 MP resolution
- Easy installation with Power over Ethernet (PoE) technology
- Water and dust resistant (IP67)
| Camera | |
|---|---|
| Sensor De Imagen | 1/2.8" Progressive Scan CMOS |
| Max. Resolución | 2560 × 1440 |
| Iluminación Mínima | Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR |
| Tiempo De Obturación | 1/3 s to 1/100,000 s |
| Día Y Noche | IR cut filter |
| Ajuste De Ángulo | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
|---|---|
| Lente | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98° |
| Montura Del Lente | M12 |
| Iris Type | Fixed |
| Apertura | F2.2 |
| Depth Of Field | 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞ |
| DORI | |
|---|---|
| DORI | 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m |
| Illuminator | |
|---|---|
| Tipo De Luz Suplementaria | IR |
| Rango De Luz Suplementaria | Up to 20 m |
| Luz De Suplemento Inteligente | Yes |
| IR Wavelength | 850 nm |
| Video | |
|---|---|
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Compresión De Video | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Vídeo Bitrate | 32 Kbps to 8 Mbps |
| Tipo H.264 | Baseline Profile,Main Profile,High Profile |
| Tipo H.265 | Main Profile |
| Bit Rate Control | CBR,VBR |
| Región De Interés (ROI) | 1 fixed region for main stream |
| Network | |
|---|---|
| Seguridad | Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address) |
| Vista En Vivo Simultánea | Up to 6 channels |
| API | ONVIF (Profile S, Profile T), ISAPI, SDK |
| Protocolos | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS |
| Usuario/Operador | Up to 32 users 3 user levels: administrator, operator, and user |
| Cliente | iVMS-4200,Hik-Connect |
| Navegador Web | Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11 |
| Image | |
|---|---|
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Máscara De Privacidad | 1 programmable polygon privacy mask |
| Interruptor Día/Noche | Day,Night,Auto,Schedule |
| Mejora De La Imagen | BLC,HLC,3D DNR |
| Configuración De Imagen | Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Interface | |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | |
|---|---|
| Evento Básico | Motion detection (support alarm triggering by specified target type (human)), exception |
| Linkage | Notify surveillance center, send email, trigger capture |
| General | |
|---|---|
| Alimentación | 12 VDC ± 25%, 0.42 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 0, max. 6.5 W |
| Material | Plastic |
| Dimensión | 138.8 mm × 60.9 mm × 57.9 mm (5.46" × 2.4" × 2.3") |
| Dimensión Del Paquete | 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0") |
| Approx. 175 g (0.4 lb.) | |
| Con Peso Del Paquete | Approx. 265 g (0.6 lb.) |
| Condiciones De Almacenaje | -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing) |
| Condiciones De Inicio Y Funcionamiento | -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing) |
| Idioma | English, Ukrainian |
| Función General | Heartbeat,anti-banding,mirror,password protection,password reset via email |
HWI-B141H-C
Data sheet
- Píxel
- 4 Mpx
- Material
- Plastic
