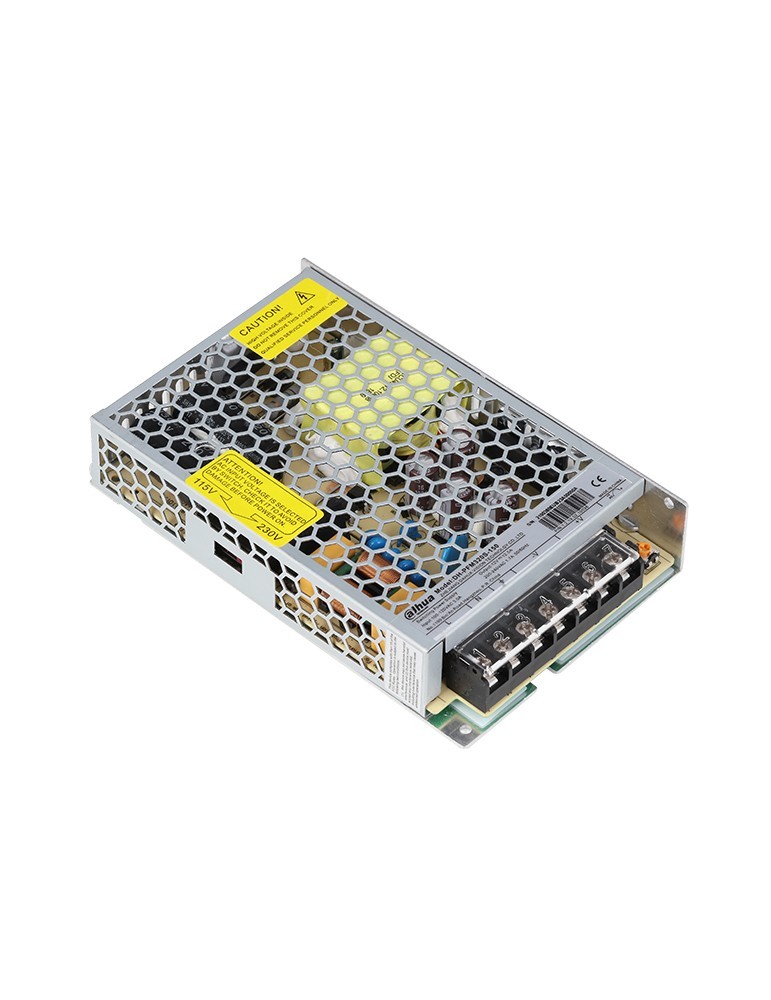

[DH-PFM320S-150] DAHUA DC12V 150W Switching Power Supply

> 88~132Vac/176~264Vac wide-range voltage input, meet the requirements in different parts for electric network fluctuation;

> Support supply power to multi-channel cameras simultaneously to meet the demand of different loads for power supply;

> Support the output voltage adjustable: can adjust the output resistance to select the right output voltage (±10%) for different loads, which is flexible in field applications;

> High quality and reliability: Pass 3 months high temperature aging test.

DH-PFM320S-150
This product is available with a high level of stock
DAHUA
Offer: 25,00 € VAT Excluded
  30,25 € VAT Included (21%)
Quantity

Technical Specification

Model

DH-PFM320S-150

Electrical Specification

Input Voltage Range

88~132Vac/176~264Vac

Efficiency

85.0% (@230Vac)

Output Voltage

12Vdc (terminal output)

Out Voltage Tolerance

±5%

Adjustable Range for DC Voltage

±10% (10.8Vdc~13.2Vdc)

Rated Output Current

12.5A

Output Power

150W

No Load Power Consumption

<0.5W

Protection/Environmental

Surge Protected

Line to ground: ±2000V

Line to line: ±1000V

ESD

Contact discharge: ±6000V

Air discharge: ±8000V

Working Temperature

-20~+50(60% output at +70)

-4~+122(60% output at +158)

Working Humidity

<90% RH

Physical Properties

Weight

0.4kg(0.88lb)

Dimension(LxWxH)

159mmx97mmx30mm (6.26”x3.82“x1.18”)

Installation

Wall mount/Ceiling mount

Color

Metallic silver

Safety Standards

Certification

CE, FCC

DH-PFM320S-150
