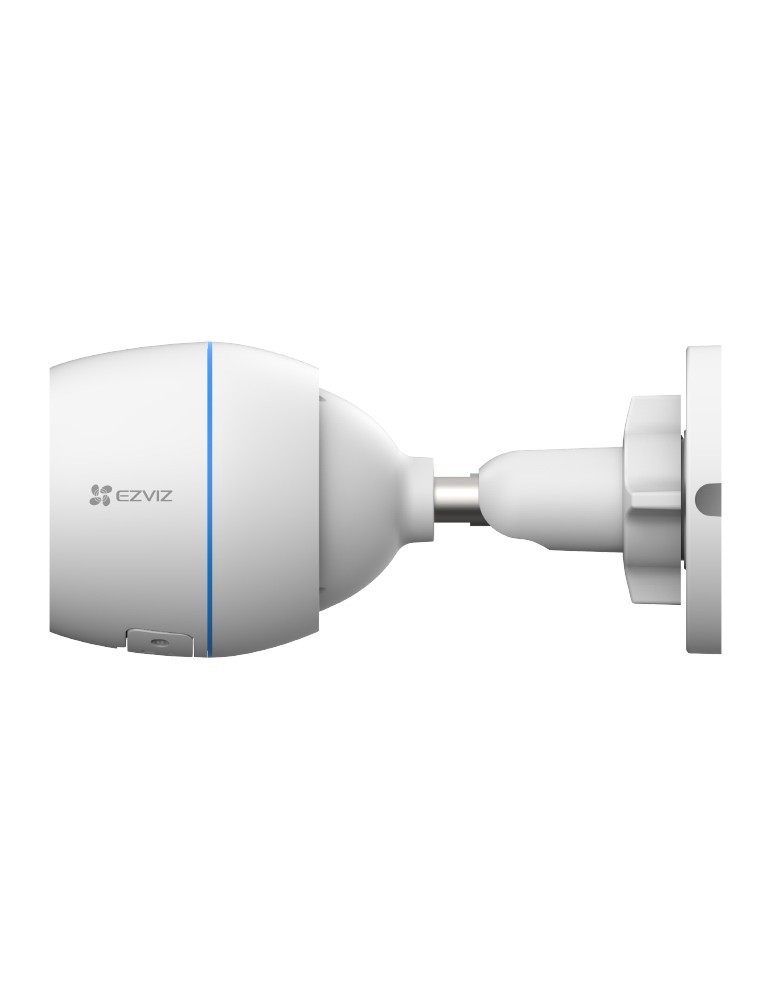

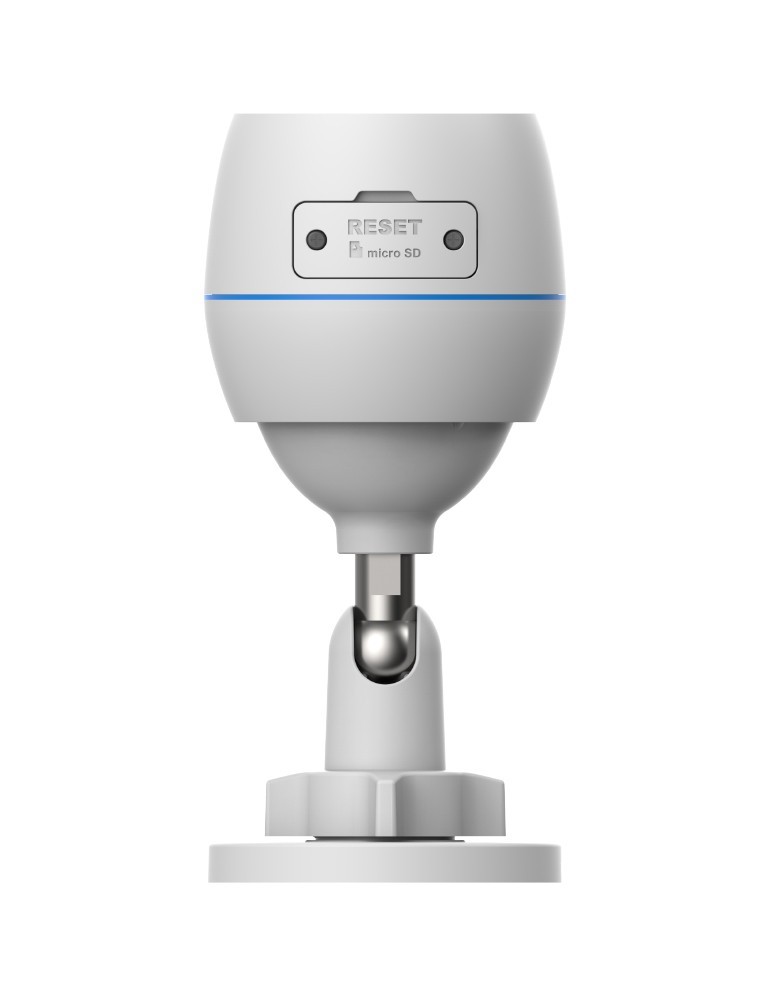

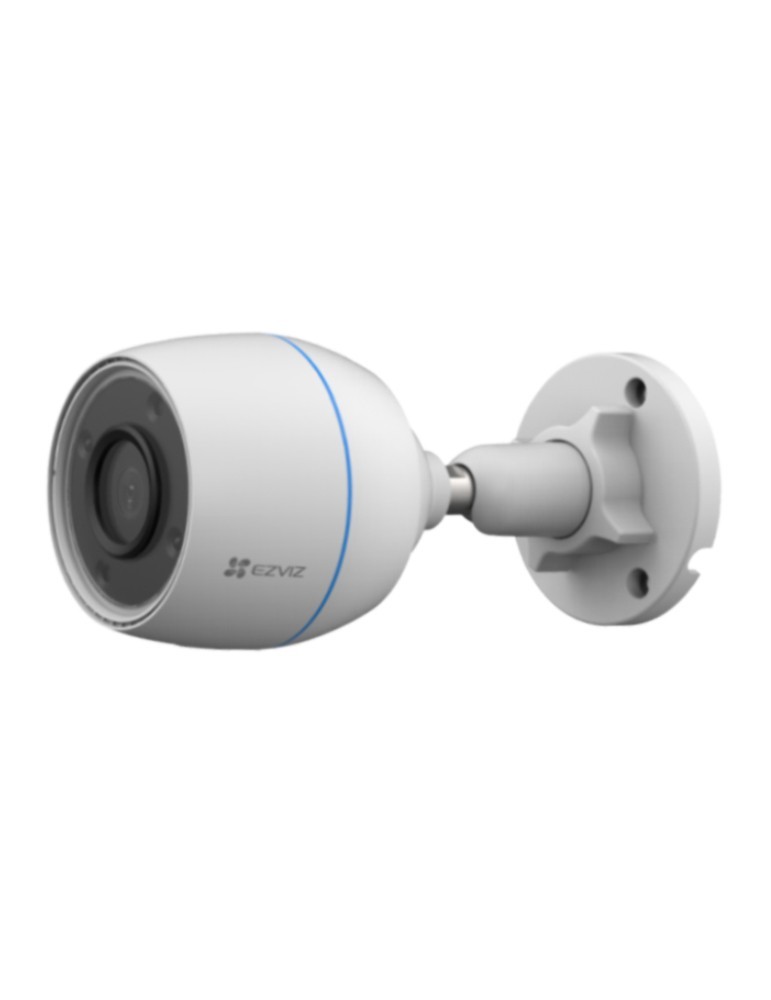

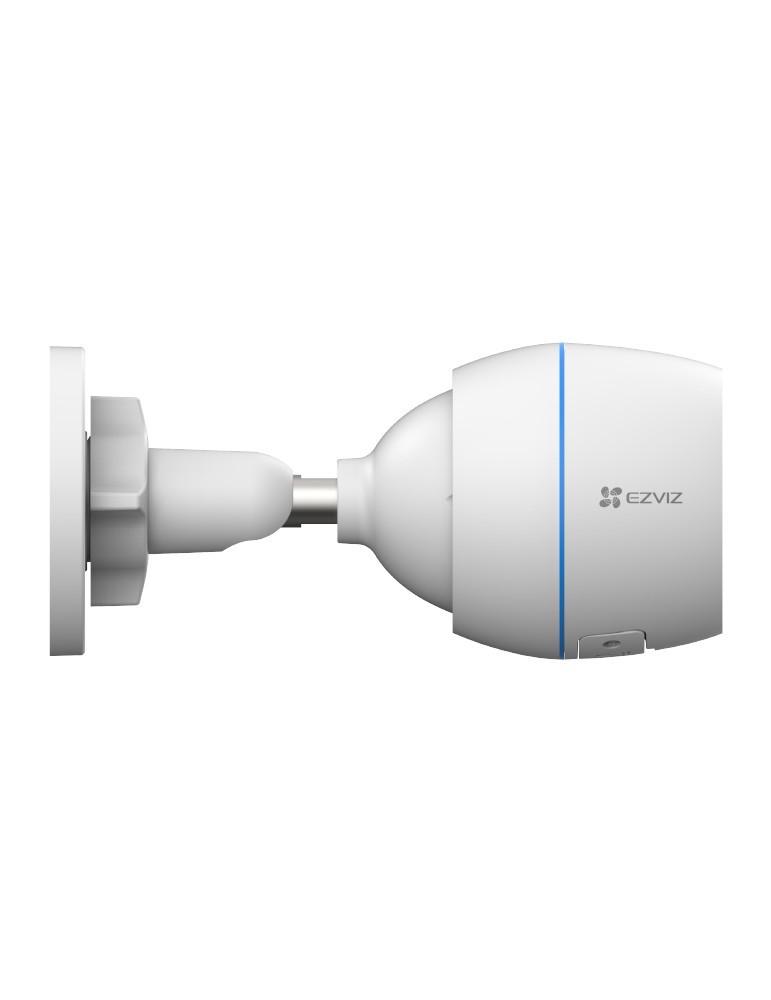

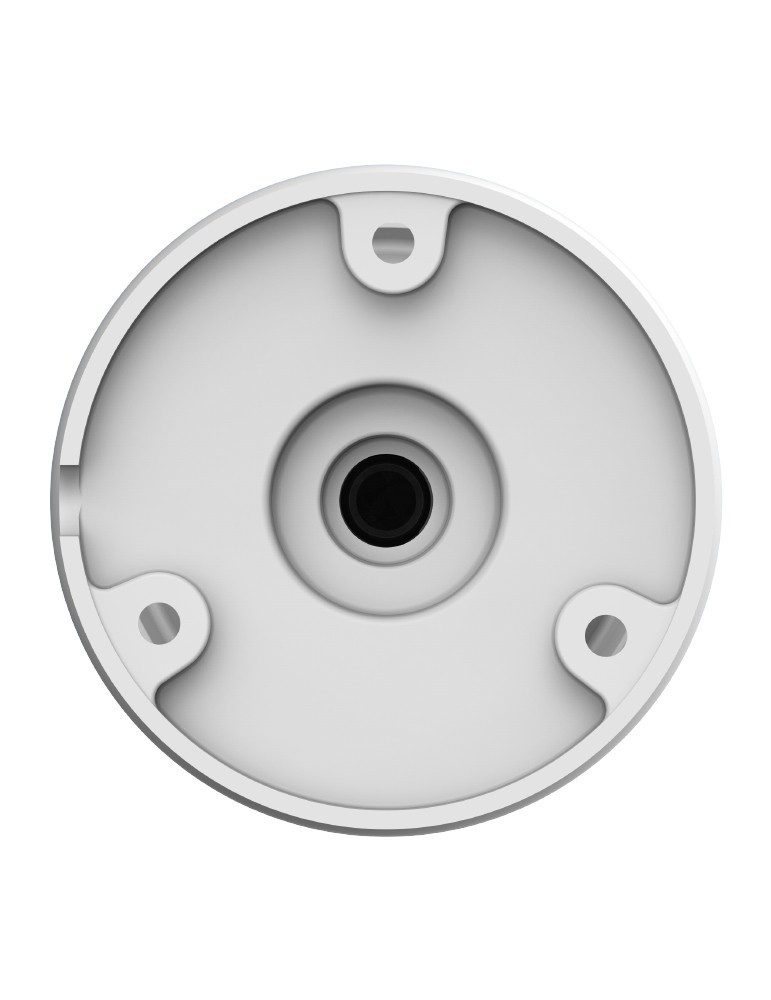

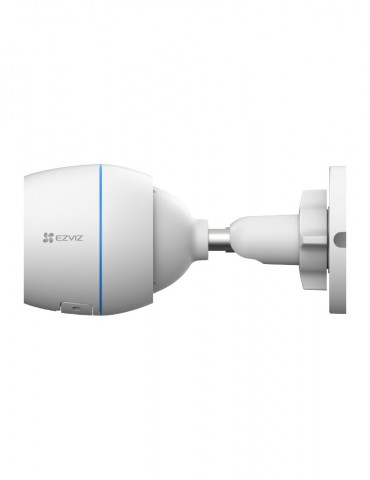

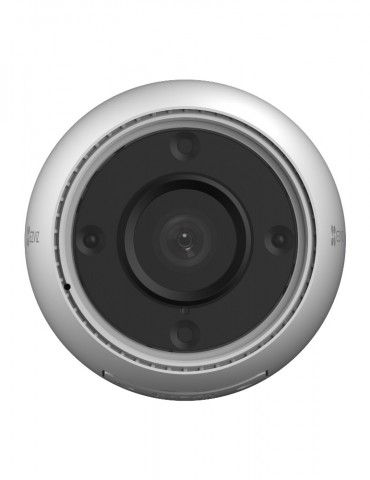

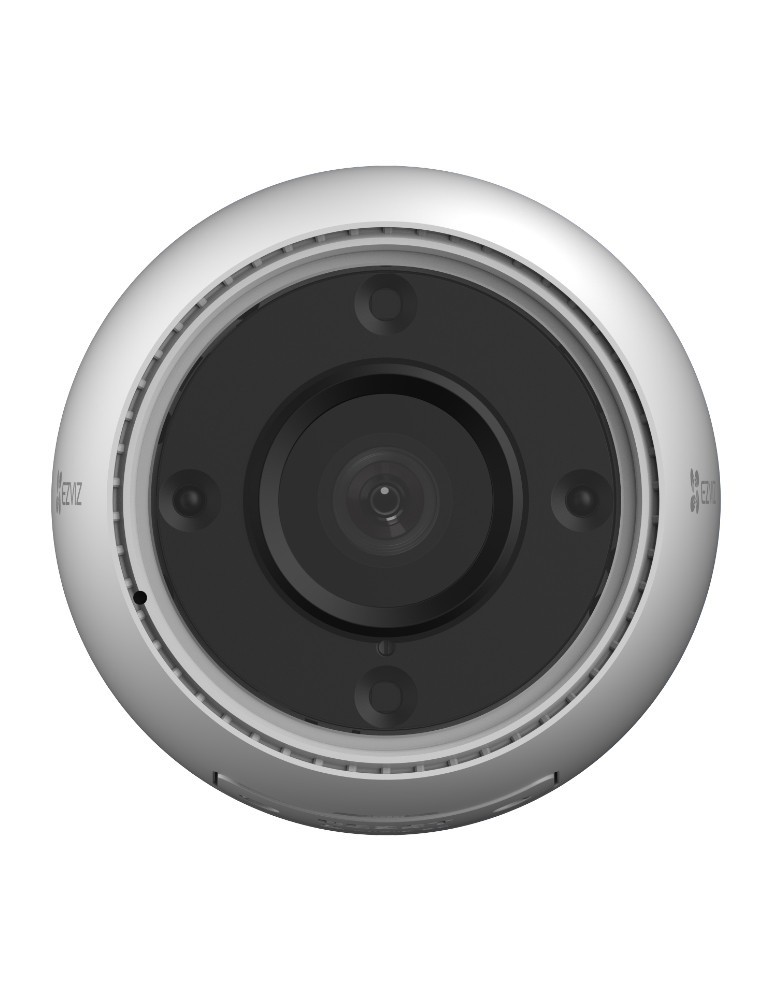

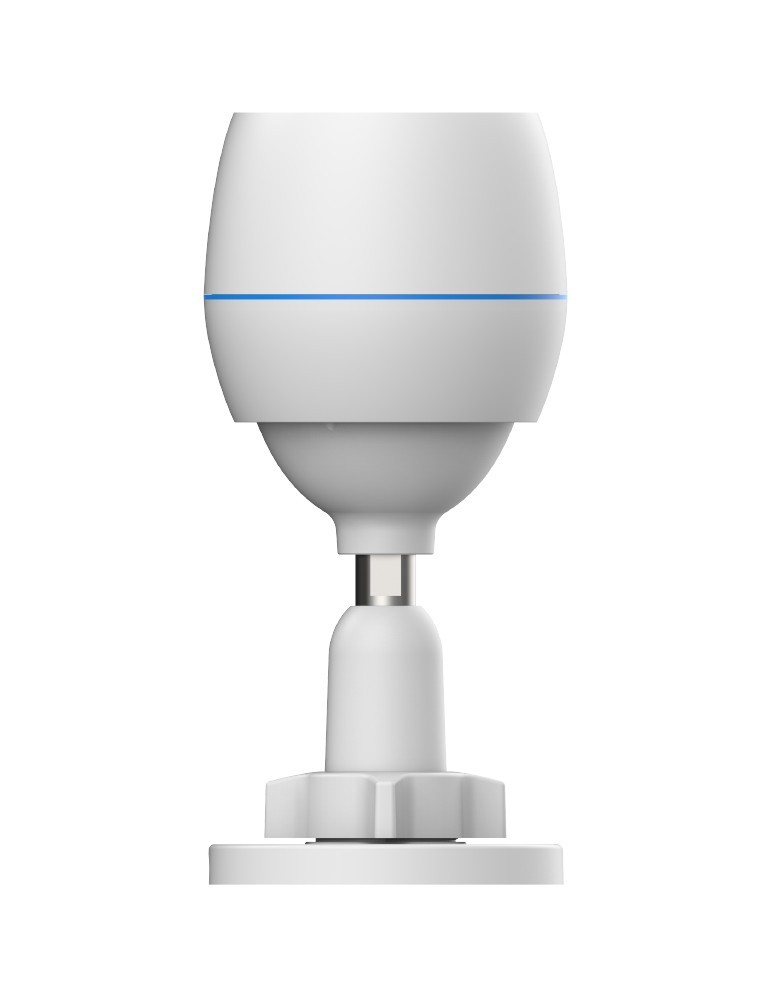

[C3TN Color] EZVIZ Wi-Fi Smart Home Camera, 2MP, IP Camera, Color Night Vision, Motion Detection, IP67
- Color night vision
- Motion detection
- Active defense with strobe light
- IP67 dustproof and waterproof
- H.265 video compression standard
- 2mp resolution
| Specifications | |
|---|---|
| Model | CS-C3TN (1080P, 2.8mm) |
| General | |
| Dimensions | 72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inch) |
| Packaging Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Net Weight | Product: 256 g (9.03 oz), With package: 500 g (17.64 oz) |
| IP Grade | IP67 |
| Operation Conditions | -4 °F to 122 °F (-20 °C to 50 °C )Humidity 95% or less (non-condensing) |
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm @ F2.0, view angle: 106° (Horizontal), 122°(Diagonal) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Video & Audio | |
| Max. Resolution | 2MP, 1920 × 1080 |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Channel Bandwidth | Supports 20MHz |
| Wired Network | RJ45 × 1(10M / 100M Adaptive Ethernet Port) |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps |
| Frequency Range | 2.4GHz ~ 2.4835 GHz |
| Functions | |
| Detection | Motion Detection |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image,Password Protection, Watermark |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Storage | |
| Local Storage | Supports microSD card (Up to 256 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Power | |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 6W |
| In the box | |
| In the box | - C3TN Color Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / REACH / RoHS / UL / FCC / UKCA |
CS-C3TN-A0-1H2WFL
Data sheet
- Píxel
- 2 Mpx
