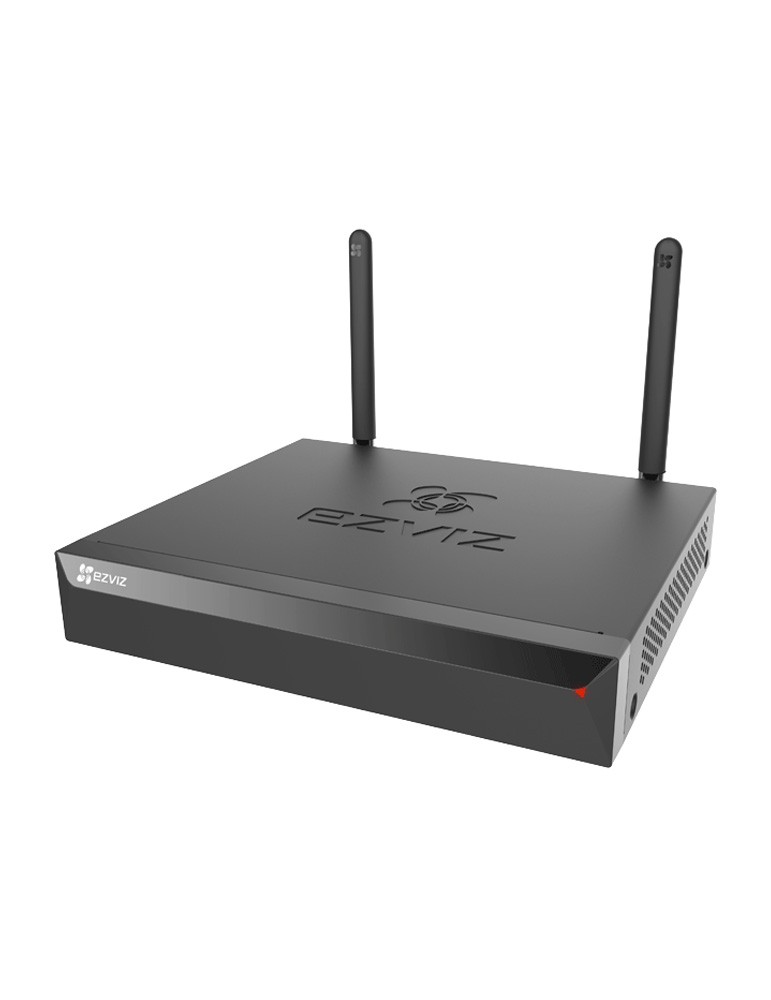

[CS-X5S-4P] EZVIZ WiFi NVR Recorder For IP Cameras 4 CH POE

  • Salida HDMI/VGA
  • Compatible con cámaras wifi de 5 megapíxeles
  • Compatibilidad H.265
  • Hasta 8 TB de almacenamiento
CS-X5S-4P
This product is available with a high level of stock
EZVIZ
Offer: 82,64 € VAT Excluded
  99,99 € VAT Included (21%)
Quantity

Technical Parameter


Model Parameters
Modell X5S-4W,X5S-8W
IP camera access capacity
Accessibility of wireless IP cameras 4 x 5MP(X5S-4W) / 8 x 5MP(X5S-8W)
Cable IP camera access capacity 4 x 5MP(X5S-4W) / 8 x 5MP(X5S-8W)
network parameters
antenna number 2
Maximum wireless range 100m
Radio frequency 2.4GHz
ethernet port one 10/100M adaptive Ethernet port
Required access bandwidth 50Mbps /100Mbps
Video output
VGA 1 channel (identical to HDMI output) resolution up to: 1920 x 1080/60 Hz
HDMI 1 channel resolution up to: 2560 x 1440/30 Hz
Audio/video codec
recording resolution 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF
video compression H.265, H.264
playback decoding Compatible with 4 x 5 MP (X5S-4W) / Compatible with 8 x 5 MP (X5S-8W)
Video Recording Management
video recording mode Manual video recording; Motion detection recording; Scheduled video recording; Triggered event recording
video recording mode Hard drive backup, internet application backup
play mode instant playback; normal playback; Event playback; Label reproduction; Event record playback
open protocol
Open protocol compliant HIKVISION ONVIF(V2.5)
Hard Disk Drive (HDD)
interface type One integrated SATA port
Ability Compatible with 3.5-inch hard drives from 1TB to 8TB
external connector
Audio output not supported
audio input not supported
Hard reset Compatible
USB 2.0 port 1
Dimensions (mm)
product dimensions 235 x 270 x 44.5mm
Packaging dimensions 387 x 362 x 75mm
Weight
Net weight <=900g
CS-X5S-4P

Data sheet

Material
Metal
Discs
1
Video Inputs
4
POE Ports
4
