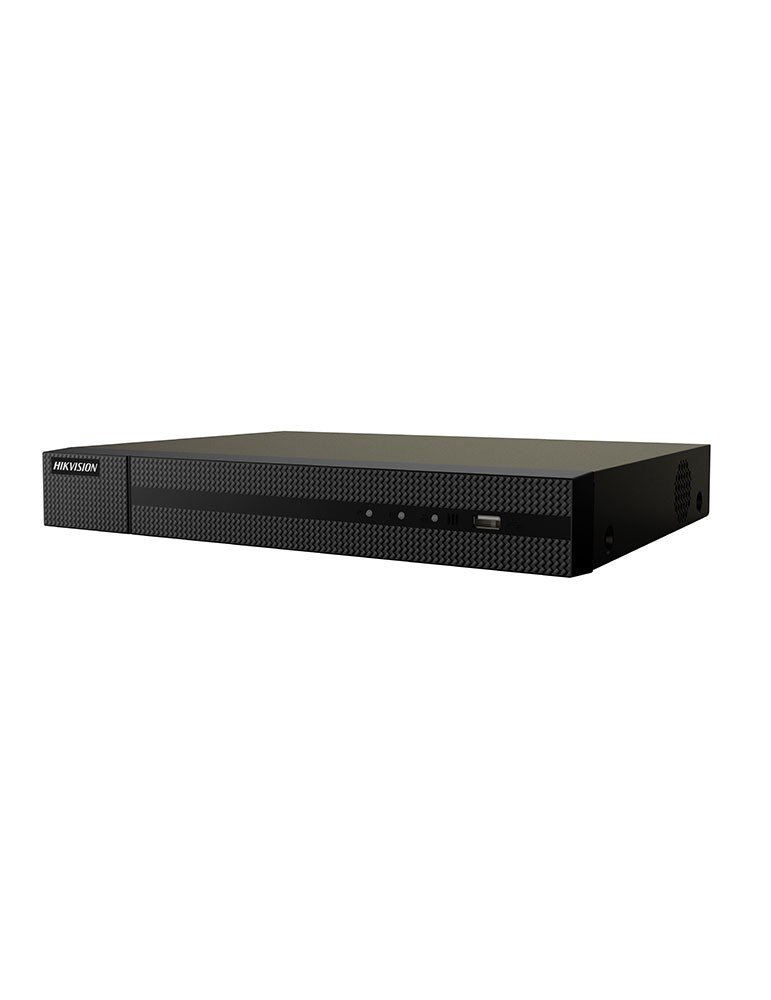

[HWD-5232MH-G2] HIKVISION Video Recorder Turbo HD DVR 5N1 HiWatch HWD-5200MH-G2 Series 32 CH

  • Output resolution up to:HDMI(4K/30Hz),VGA(1080P/60Hz)
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 32-ch Analog Video input
  • Up to 18-ch IP camera inputs (up to 5 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
  • 2 SATA interface,Up to 10TB capacity for each disk
HWD-5232MH-G2
This product is available with a high level of stock
HIKVISION
Offer: 297,52 € VAT Excluded
  360,00 € VAT Included (21%)
Quantity

  • Video recorder x1
  • sata power cable x1
  • Handbook x4
  • Screws for HDD x8
  • sata data cable x2
  • AC/DC adapter x1
  • power cord x1
  • Mouse x1

Video/Audio input
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input 32-ch
HDTVI input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
IP video input 2-ch (up to 18-ch)
Audio compression G.711u
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
HDMI/VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution 1080p lite/720p/VGA/WD1/4CIF/CIF
Main stream Frame rate Main stream:
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream Frame Rate Sub-stream:
For 1080p and 720p stream access: CIF/QVGA@15fps
For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 16-ch
Network management
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA Interface 2, SATA interface
Hard Disk Capacity Up to 10 TB capacity for each disk
External interface
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
General
Power supply 12 VDC
Consumption (without HDD) ≤ 18 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimensions (W × D × H) 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
Weight (without HDD) ≤ 2.2 kg (4.9 lb)
HWD-5232MH-G2

Data sheet

Material
Metal
Discs
2
Video Inputs
32
