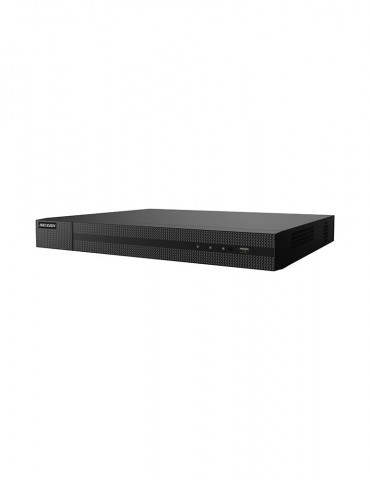

[HWD-6232MH-G2] HIKVISION Video Recorder Turbo HiWatch 32CH
- 32-ch motion detection2.0
- 32 Turbo HD/CVI / AHD / CVBS
- self-adaptive interfaces input
- 32-ch video&1-ch audio input
- H.265/H.265+ compression
- 2 SATA
- interface:1920×1080P @15 fps, 4MP Lite@15fps/ch, 4K UHD output
- 1U case
- Video recorder x1
- sata power cable x1
- Handbook x4
- Screws for HDD x8
- sata data cable x2
- AC/DC adapter x1
- power cord x1
- Mouse x1
| Video/Audio input | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog video input | 32-ch |
| HDTVI input | 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| CVBS input | PAL/NTSC |
| IP video input | 2-ch (up to 34-ch) Enhanced IP mode on: 8-ch (up to 40-ch), each up to 4 Mbps Up to 6 MP resolution |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 32-ch via coaxial cable |
| Video/Audio output | |
| HDMI/VGA output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | When 1080p lite mode is not enabled: 4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF When 1080p lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Main stream Frame rate | When 1080p Lite mode is not enabled: 4 MP lite/1080p@15 fps; 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode is enabled: 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Sub-stream Frame Rate | WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
| Video bit rate | 32 Kbps to 6 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 16-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard disk | |
| SATA Interface | 2 SATA interfaces |
| Hard Disk Capacity | Up to 10 TB capacity for each disk |
| External interface | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Network interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
| General | |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 40 W |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch) |
| Weight (without HDD) | ≤ 2 kg (4.4 lb) |
HWD-6232MH-G2
Data sheet
- Material
- Metal
- Discs
- 2
- Video Inputs
- 32
