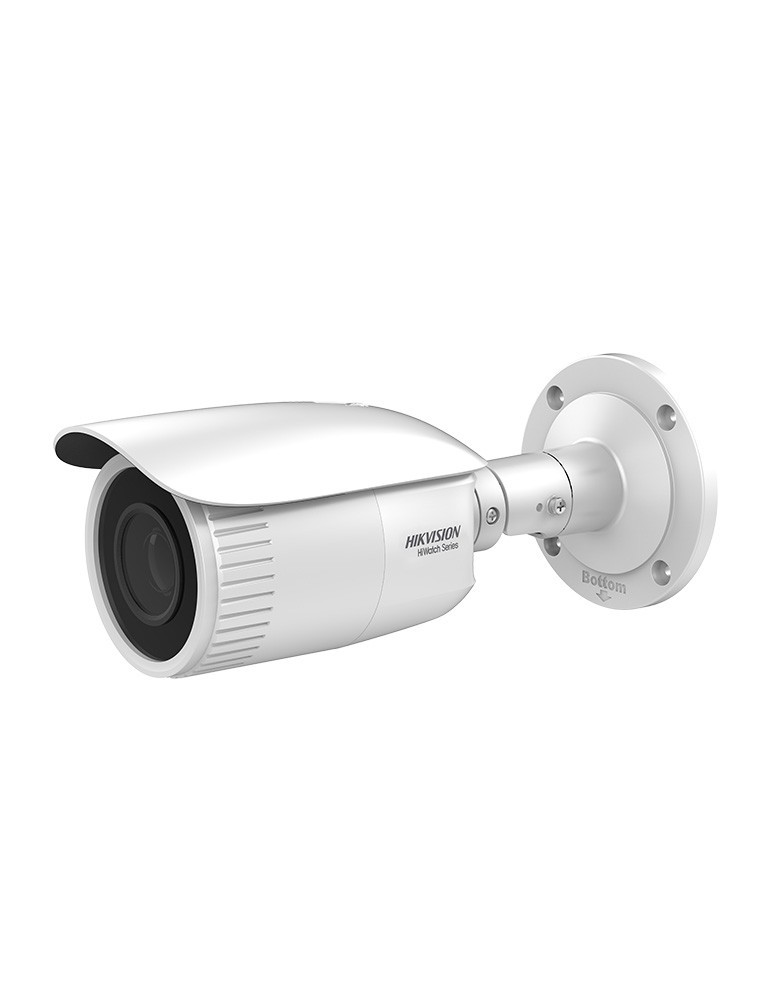

HIKVISION HiWatch Bullet Compact IP Camera HWI-B640H-Z 4MP

  • IR30m 2.8mm to 12mm H265+ POE IP67
  • 1/3" progressive scan CMOS
  • 2560 × 1440@20fps
  • 2.8 mm to 12 mm motorized varifocal lens
  • H.265+, H.265, H.264+, H.264
  • Dual stream
  • 120 dB WDR (Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • Up to 30 m IR range
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • PoE (Power over Ethernet)
  • IP67
HWI-B640H-Z(C)
This product is available with a high level of stock
HIKVISION
Model
Offer: 107,44 € VAT Excluded
  130,00 € VAT Included (21%)
Quantity

Camera
Appearance Bullet
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Auto-Iris No
Day & Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Focal Length 2.8 to 12 mm
Aperture F1.6
Focus Auto
Angle of view Horizontal field of view: 98° to 28°, Vertical field of view: 51° to 16°, Diagonal field of view: 115° to 32°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest 1 fixed region for main stream and sub-stream
Resolution 4MP
Main Stream Max. Frame Rate 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream Max. Frame Rate 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled
Network
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Network Storage Support micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.9 A, max. 11 W;
PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W
Ingress Protection level IP67
Material Metal
Dimensions Φ 105 mm × 244.4 mm (Φ 4.1" × 9.6")
Weight Camera: approx. 1035 g (2.3 lb.)
With package: approx. 1550 g (3.4 lb.)
HWI-B640H-Z(C)

Data sheet

Píxel
4 Mpx
Material
Metal
Zoom
Motorized

Specific References

isbn
11024
upc
0103010032
