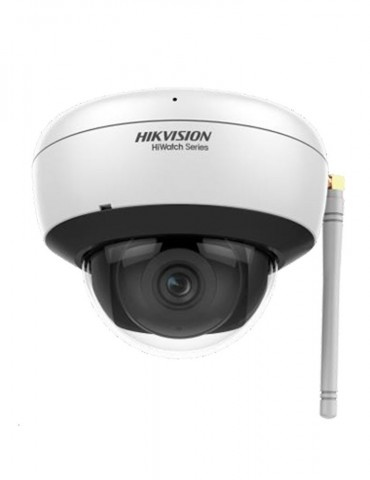

HIKVISION HiWatch Dome Compact IP Camera

  • 1/2.8" progressive scan CMOS
  • 1920 × 1080@30fps
  • 2.8 mm/4 mm /6mm fixed lens
  • H.265+/H.265/H.264+/H.264
  • Dual stream
  • Digtal WDR (Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • Up to 30 m IR range
  • PoE (Power over Ethernet)
  • IP67, IK10
HWI-D220H-D/W-0280
This product is available with a medium stock level
HIKVISION
Model
Offer: 89,26 € VAT Excluded
  108,00 € VAT Included (21%)
Quantity

  • Camera x1
  • set of screws with dowels x1
  • Waterproof jacket x1
  • QSG manual x1
  • sticker for installation x1

Camera
Appearance Dome
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR cut filter
Digital Noise Reduction 3D DNR
WDR DWDR
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
Lens
Focal Length 2.8 mm, 4 mm
Aperture F2.0
Focus Fixed
Angle of view 2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°
4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile/Baseline Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest 1 fixed region for main stream
Resolution 2MP
Main Stream Max. Frame Rate 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled, day, night
Network
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API ONVIF (PROFILE S), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator, and User
Client iVMS-4200, Hik-Connect
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Ingress Protection level IP67
Impact Protection IK10
Material Bubble: plastic, front cover: plastic, bottom base: metal
Dimensions Camera: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2")
With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight Camera: Approx. 400 g (0.9 lb.)
With package: Approx. 600 g (1.3 lb.)
HWI-D220H-D/W-0280

Data sheet

Píxel
2 Mpx
Material
Plastic

Specific References

isbn
11030
upc
0103020016
