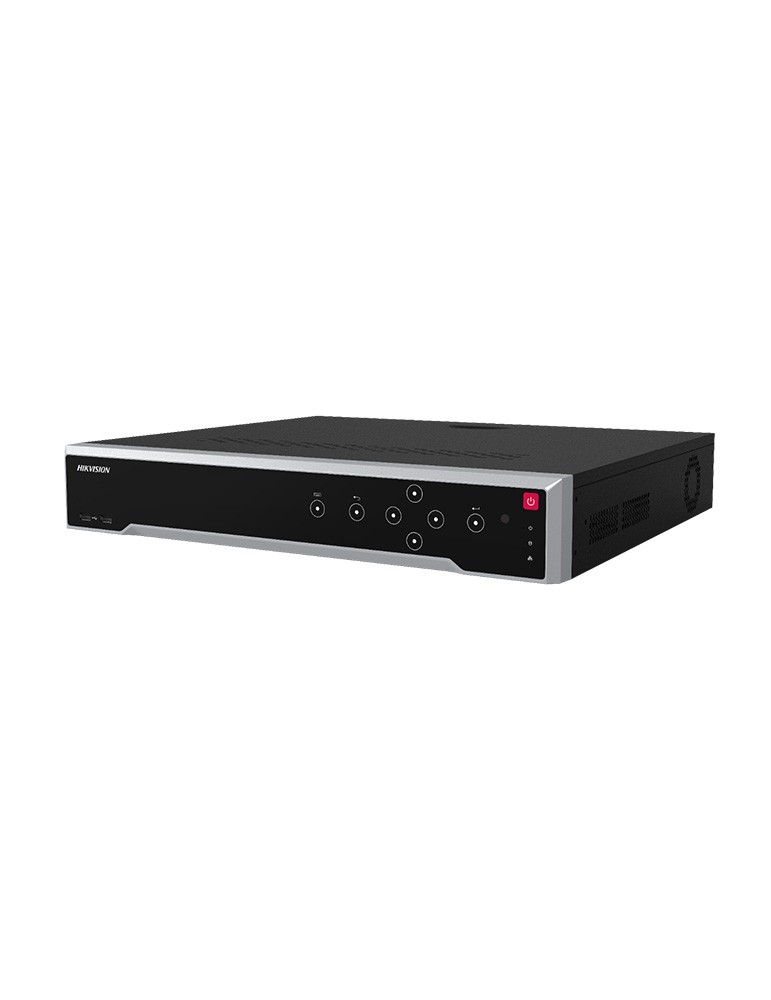

[DS-7732NI-K4] HIKVISION HiWatch Network Video Recorder for IP Camera NVR 32-ch 1.5U 4K
- Up to 32-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
- Up to 256 Mbps incoming bandwidth
- Recording
- Compresión de audioG.711ulaw/G.711alaw/G.722/G.726/acc/MP2L2
- Video and Audio
- Entrada de vídeo IP32-ch
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI/VGA independent output
- CVBS OutputN/A
- Salida de audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
- Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Descodificación
- Formato de decodificaciónH.265/H.265+/H.264+/H.264/MPEG4
- Resolución de grabación12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Reproducción Sincrónica16-ch
- Decodificación1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps)
- Stream TypeVideo, Video & Audio
- Red
- Conexión remota128-ch
- Protocolo de redTCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Interfaz de red2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Auxiliary Interface
- Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- SATA4 SATA interfaces
- CapacidadUp to 10 TB capacity for each HDD
- Interfaz de serie2 RS-485 (half-duplex), 1 RS-232
- Interfaz USBFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarma E/S16/4 (16/9 is optional)
- General
- Fuente de alimentación100 to 240 VAC, 50 to 60Hz
- Consumo≤ 20 W (without HDD)
- Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
- Condiciones de Humedad10 to 90 %
- Dimensión (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
- ≤ 5 kg (without HDD, 11 lb.)
- Certificación
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
DS-7732NI-K4
Data sheet
- Material
- Metal
- Discs
- 4
- Decoding Capability
- 8-ch @ 1080P
- Video Inputs
- 32
