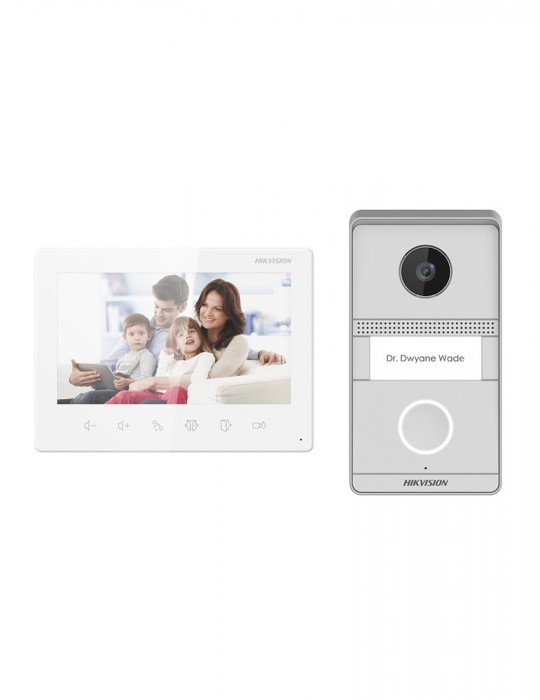

[DS-KIS101-P/Surface] HIKVISION Video Intercom KIT 2-Wire Analog Intercom Kit
- 2-Wire plug & play, easy, cost-efficient
- Receive video call and unlock via indoor station
- 7-inch TFT screen with 1024*600 resolution
- 2MP HD colorful camera
- View in color, even in darkness
- One-touch calling with nametag
- IP65 water resistant, preventing from water ingress
- IK7 vandal resistant
- 2 lock relays, power supply for one electric lock (Up to 12V 1A)
- Door station/System parameters
- Operation systemEmbedded analog operation system
- Door station/Video parameters
- Supplement lightWhite light supplement
- LensLow Illumination 2 MP HD IR Camera
- FOVHorizontal: 100°, Vertical: 69°
- WDRSupport
- Resolution2MP
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker (More than 80 dB within 20 cm)
- Volume adjustmentAdjustable with screwdriver
- Door station/Device interfaces
- Alarm input4
- Two-Wire1
- TAMPER1
- Exit button2
- Lock control2, lock duration can be adjusted via DIP switch (Max. 7 s)
- Door contact input2
- Power supply for lock1, Max. 12 V 1 A
- Debugging port1
- Door station/General
- Button1
- InstallationSurface mounting with protective shield
- Protective levelIP65, IK7
- Working temperature-30 °C to +60 °C (-22 °F to 140 °F)
- Working humidity10% to 90%
- Dimensions150 mm × 82 mm × 23.5 mm (5.91" × 3.23" × 0.93")
- Power supply48 VDC, 0.5 A
- Application environmentOutdoor
- Power consumption≤ 12 W
- Indoor station/System parameters
- Operation systemEmbedded analog operation system
- Indoor station/Display parameters
- Size7-inch TFT non-touch screen
- Operation method6 touch buttons
- TypeColorful TFT screen
- Resolution1024 × 600
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker (More than 80 dB within 20 cm)
- Audio quality/
- Volume Adjustable via touch-button
- Audio compression Rate/
- Indoor station/Device interfaces
- Two-wire3
- Indoor station/General
- Power supply48 VDC
- Power consumption≤ 5 W
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90%
- Dimensions (W × H × D)187 mm × 137 mm × 25.4 mm (7.36" × 5.39" × 1.00")
- InstallationSurface mounting
- Button6
DS-KIS101-P/Surface
Data sheet
- Screen Size
- 7"
- Connection Method
- 2 Hilo
