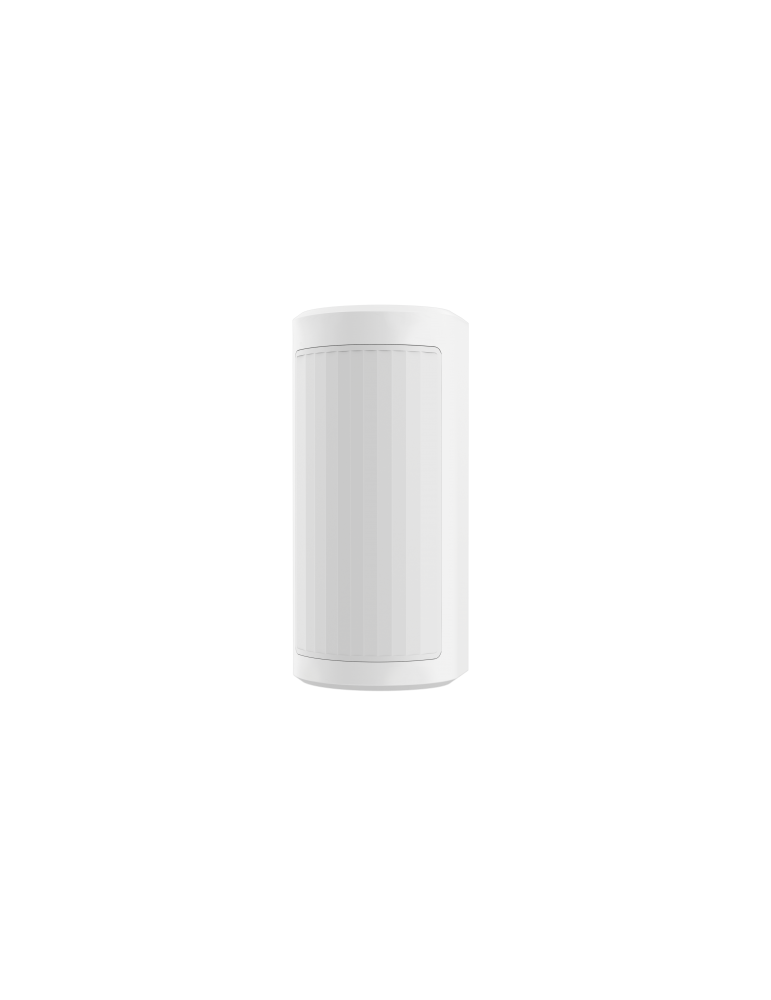

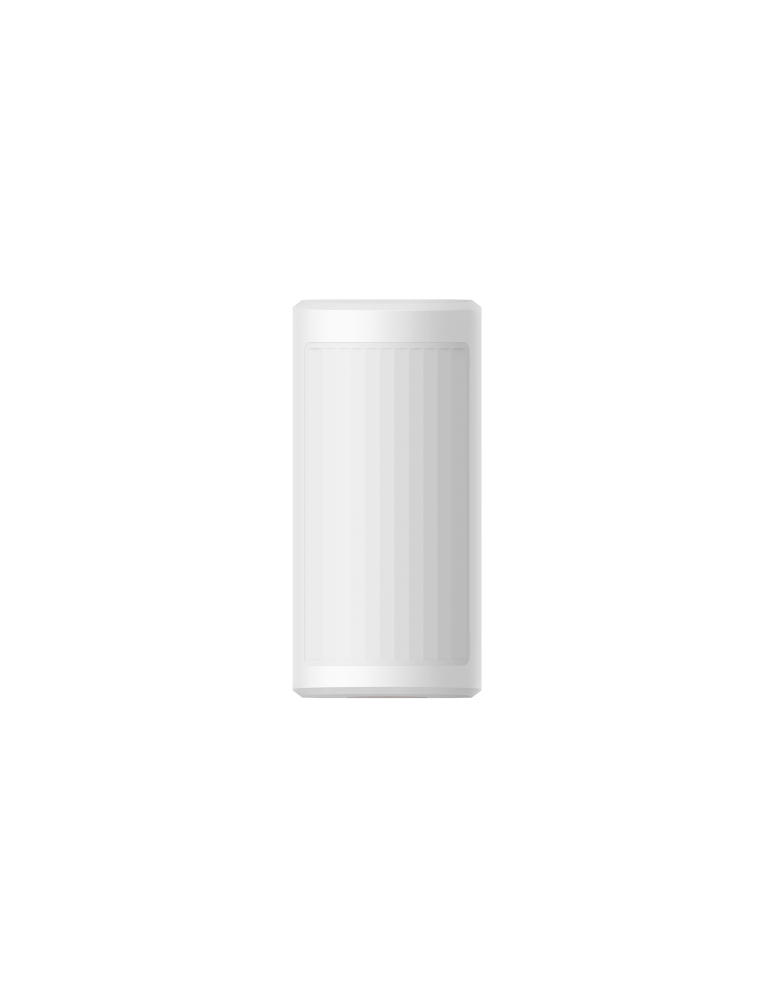

[DS-PDP18-HM-WE]HIKVISION Wireless Double PIR Detector
- High/Low mount adjustment
- IP65 weather resistance for outdoor application
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
| Detection Performance | |
|---|---|
| Detection Method | Passive Infrared |
| Rango de detección | 18 m |
| Detection Angle | 90° |
| Detection Zones | 118 |
| Detectable Speed | 0.3～2m/s |
| Sensibilidad | Auto;Pet |
| White Light Filter | 20000lux |
| Inmunidad a mascotas | Up to 24 kg |
| Digital Temperature Compensation | Support |
| Feature | |
|---|---|
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front;Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
|---|---|
| Interruptor de alimentación | Power up enrolling |
| Indicador LED | Blue (alarm) |
| Transmission | |
|---|---|
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Frecuencia de transmisión | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.6Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up;Remote ID;QR Code |
| Electrical Characteristics | |
|---|---|
| Standard Battery Life | Up to 5 years (standby time) |
| Fuente de alimentación | Battery powered |
| Tipo de batería | CR123A × 2 |
| Typical Voltage | 3V |
| General | |
|---|---|
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Temperatura de almacenamiento | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 67.3 mm × 141.6 mm × 60 mm |
| 301 g | |
| Mounting Height | 2.5 to 3 m high mount. 0.8 to 1.2 m low mount |
| Mounting Method | Wall |
| Escenarios de aplicación | Indoor, outdoor |
| Soporte | Adjustment bracket included |
